ממיר אודיו Digital Audio Converter – 2 Ways

Description

Type: Digital Audio Converter – 2 Ways

Color: Silver

Overview:

The Digital 2 ways audio converter is a Coaxial / Toslink audio converter, compact and convenient.
It accepts S/PDIF audio signal input through either Coaxial cable or Toslink cable,and pass the
audio signal to both its coaxial and Toslink output ports. With its built-in amplification feature, It can
also serve as a repeater of audio signal and double the transmit distance.

Features:

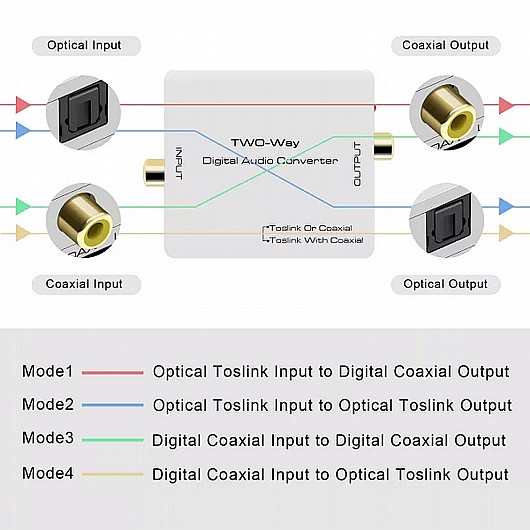

• Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.
• Supports amplification of S/PDIF audio and extends the transferring distance, through coaxial or Toslink cables.
• Select one input from Coaxial or Toslink input ports, and send S/PDIF audio signal to both Coaxial and Toslink output ports c.
• Compact design and easy to install.
• DC 5V power supply

Specifications:

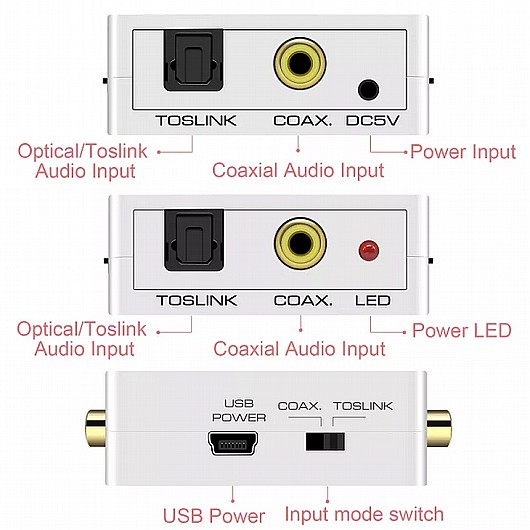

• Input: 1 x Coaxial RCA Jack;1 x Toslink (optical fiber)
• Output:  1 x Coaxial RCA Jack ;1 x Toslink (optical fiber)
• Support audio format: LPCM2.0/DTS/Dolby-AC3
• Sampling frequency:  650nm
• Max baud rate: 16Mbps
• Output distance:  ≤10m(Use the optical fiber cable loss less the0.2Db/m )
• Max working current:  100mA
• Power adapter format:  DC5V/USB5V
• Power Consumption (Max):  0.5W
• Operating Temperature:  0°C ~ 40°C / 2°F ~ 104°F
• Storage Temperature:  20°C ~ 60°C / -4°F ~ 140°F
• Operating Humidity range:  20 ~ 90% RH (Non-condensing)
• Dimension:  66 x 55 x 20 (mm)
• Weight: 40g

package included:

• Digital  audio converter – 2 ways
• USB to Mini-USB power cable
• User manual
