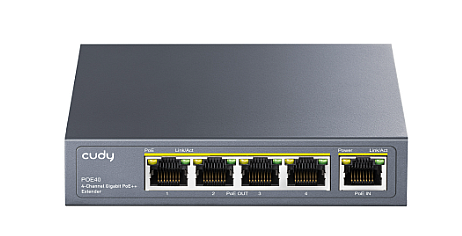

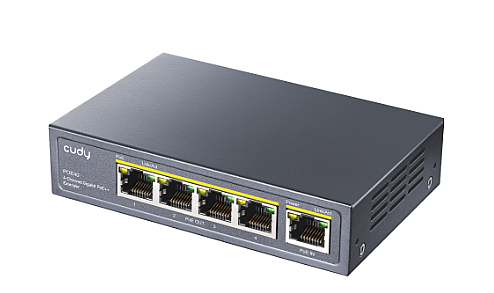

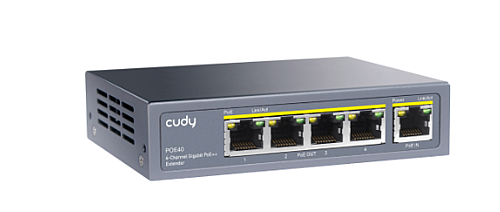

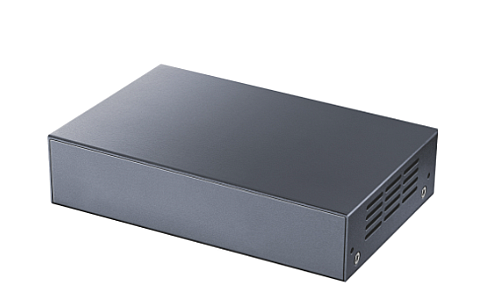

רכזת רשת / ממתג Cudy POE40

מפרט

• דגםPOE40
• No. of channels1(PoE IN) into 4(PoE OUT)
• Power over Ethernet inputPin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
• Power over Ethernet OutputPin Assignment and Polarity: 1/2 (+), 3/6 (-) Output Power: up to 12W for 4 PSE or 30W for 2 PSE
• IndicatorsLED indicators are located on the RJ45 connector Power indicator: PoE enabled Powered success:Power Network indicator: Link/Act
• חיבוריםShielded RJ-45, EIA 568A and 568B
• כבל רשתShielded category 5E (or higher)
• מידות119mm x 85mm x 28mm
• תליה על קירWall of shelf
• סביבהIndoor
• תנאי סביבהOperating Ambient Temperature: 0 to 45℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 70℃ Storage Humidity: Maximum 95%, Non-condensing
• Regulatory ComplianceIEEE 802.3af (15.4W) IEEE 802.3at (30W) IEEE802.3at 4Pairs(60W)
