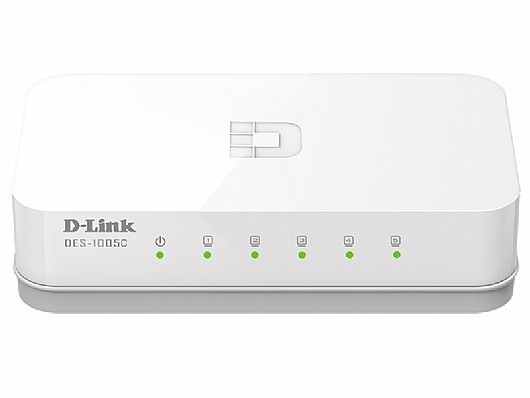

øëæú øùú / îîúâ D-Link DES-1005C

Device Interfaces

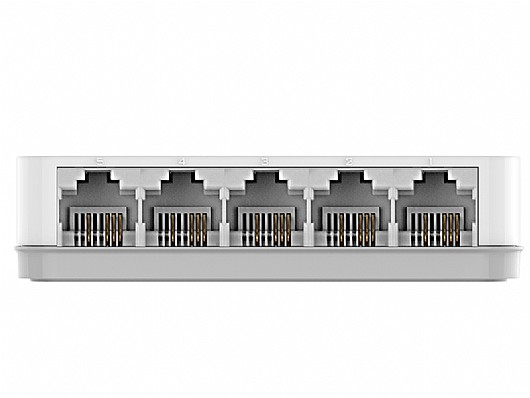

• Five 10/100 Mbps LAN ports

Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity
• 1 Gbps switching fabric

Advanced Features
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 2,048 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• EEE compliant IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3az EEE
• IEEE 802.3x flow control

Data Transfer Rates
• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Transmission Method
• Store-and-forward

MAC Address Table Size
• 2,000

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer
• 96 KB per device
