| Attribute name | Attribute value |
|---|
| ãâí |

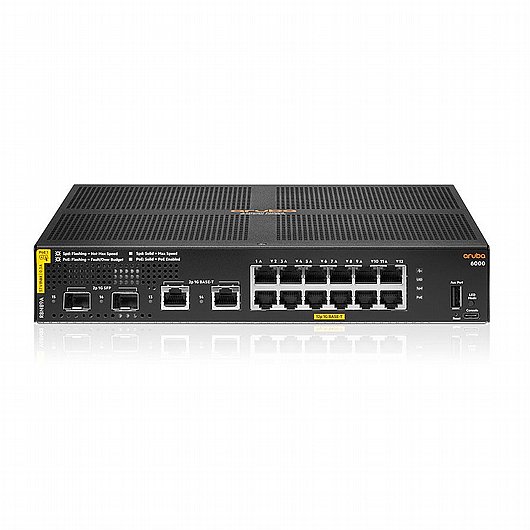

Aruba 6000 12G CL4 2SFP 139W Switch |
| î÷"è |
R8N89B |
| éëåìú îéúåâ |
32Gbps |
| îîãé äîåöø |
4.39x25.4x25.5 ñ"î |
| îù÷ì äîåöø |
ë-2.78 ÷"â |
| öøéëú äñô÷ îøáéú |
w/o PoE 21.9W | w/PoE 170W |
DifferentiatorClass 4 PoE/PoE+
Power consumptionMax. Power (w/o PoE): 19.7W
Max. Power (w/ PoE): 165W
Input voltage100–127 VAC / 200–240 VAC
Ports12 x 10/100/1000BASE-T Class 4 PoE ports
2 x 1 G SFP ports
2 x 1 GbE ports
Supports PoE Standards IEEE 802.3af, 802.3at
1 x USB-C console port
1 x USB Type-A host port
Latency1 Gbps: 2.3 μSec
Switching capacity32 Gbps
Throughput23.8 Mpps
Memory and processorCPU: Dual-core Arm® Cortex-A9 @ 1016 MHz
Memory: 4 GB DDR3
Flash: 16 GB eMMC
PoE capability139W Class 4 PoE/PoE+
Operating temperature32°F to 104°F (0°C to 40°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Management featuresManagement flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
